1. Obtain the Oracle client binaries from Oracles site
  2. Place the Oracle binaries in C:\Oracle or whatever drive you choose
  3. Unzip the binaries to
    • C:\Oracle\oracle_32 (32 bit)
    • C:\Oracle\oracle_64 (64 bit)
  4. If you are going to install both 32 bit and 64 bit, install 64 bit first.
  5. Then follow the directions in this URL to get 32 bit installed (if you do not follow these directions, the setup install window will disappear): http://pivotaldata.blogspot.com/2016/09/the-disappearing-act-oracle-12c-client.html

32 BIT

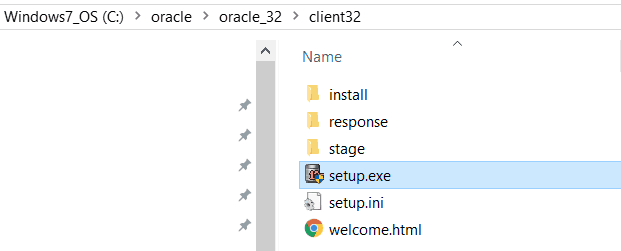

1. For 32 bit, go to C:\Oracle\Oracle_32\client\setup.exe and run this executable

32 bit setup executable

2.Select Installation type, click on Administrator and click Next

installation type administrator 32 bit

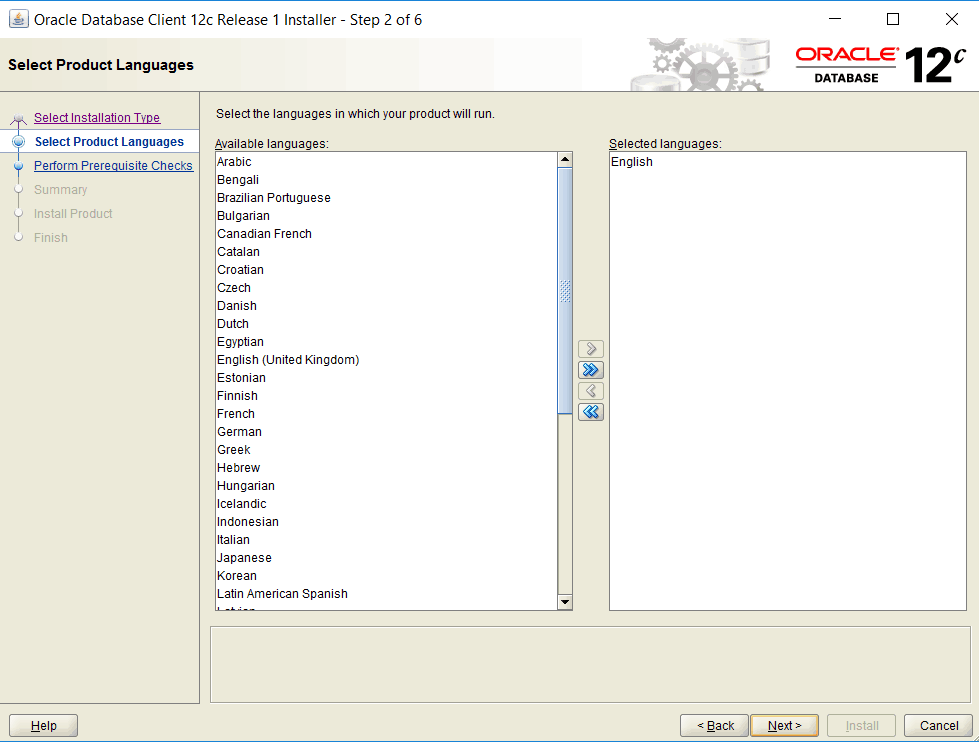

3. Select Product Languages, English will already be added (if you want other languages add them) and click Next.

32 bit product languages

4. Specify Oracle Home User, use the default “Use Windows Built-in Account” and click Next.

oracle home user use windows built-in account

5. Specify Installation Location, specify the correct location and click Next and click Install to install Oracle.

  • Oracle Base is C:\Oracle
  • Change the Software Location to C:\Oracle\product\12.1.0\client_32
specify installation location 32 bit

6. For instructions on how to configure Oracle and test connections look at section Configure Oracle Client

64 BIT

1.For 64 bit, go to C:\Oracle\Oracle_64\client\setup.exe and run this executable

64 bit setup executable

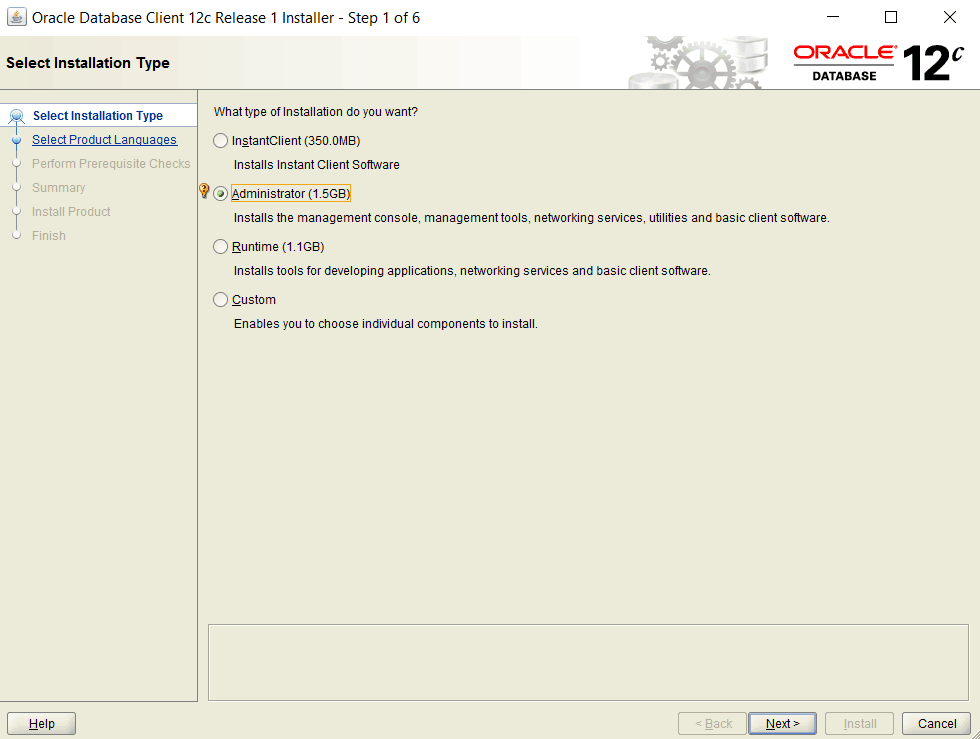

2. Select Installation type, click on Administrator and click Next

installation type administrator 64 bit

3. Select Product Languages, English will already be added (if you want other languages add them) and click Next.

64 bit product languages

4. Specify Oracle Home User, use the default “Use Windows Built-in Account” and click Next.

oracle home user use windows built-in account

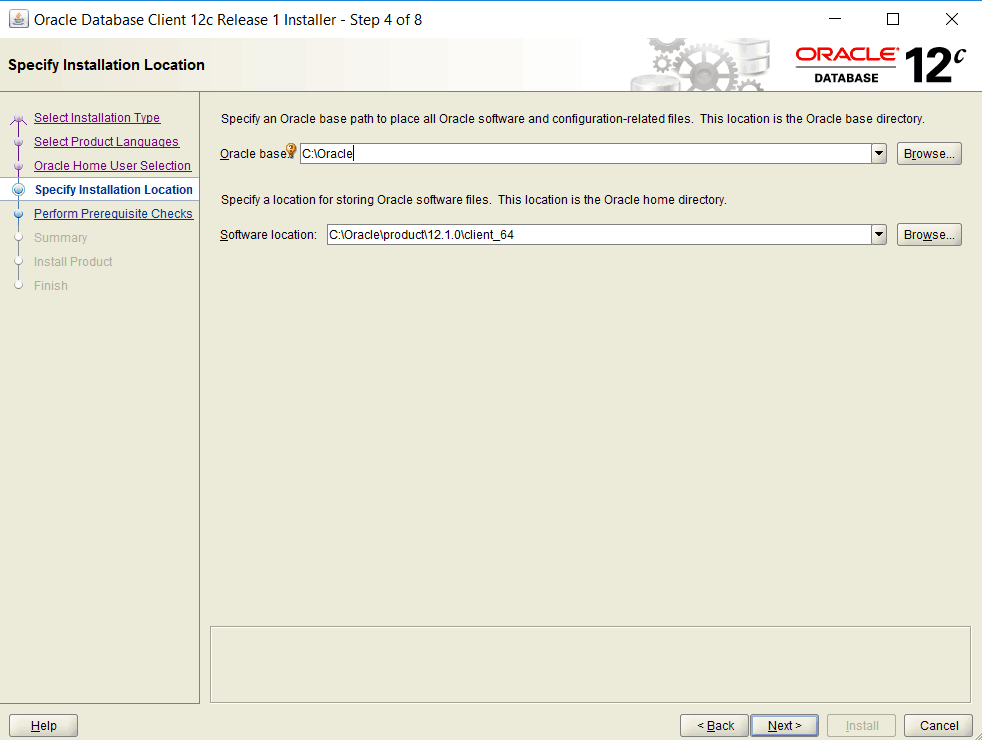

5. Specify Installation Location, specify the correct location and click Next and click Install to install Oracle.

  • Oracle Base is C:\Oracle
  • Change the Software Location to C:\Oracle\product\12.1.0\client_64
specify installation location

6. For instructions on how to configure Oracle and test connections look at section Configure Oracle Client

Configure Oracle Client

  1. Go to C:\oracle\product\12.1.0\client_64\network\admin\sample and copy the tnsnames.ora file and paste it to C:\oracle\product\12.1.0\client_64\network\admin OR create a blank file called tnsnames.ora in directory C:\oracle\product\12.1.0\client_64\network\admin.
    • If the application provided you a tnsnames.ora entry place in C:\oracle\product\12.1.0\client_64\network\admin\tnsnames.ora
  2. To test tnsnames.ora entry. Open a command prompt and type the following. Where oracleinstance is the aliasname you added in tnsnames.ora. If you get an OK (## msec), then it has access to Oracle.
    • Tnsping <oracleinstance>
  3. You can also login to oracle with the username and password that is provided to you by the Oracle DBA.
    • Open a command prompt
      • Type
        1. sqlplus username/password@oraclesource
